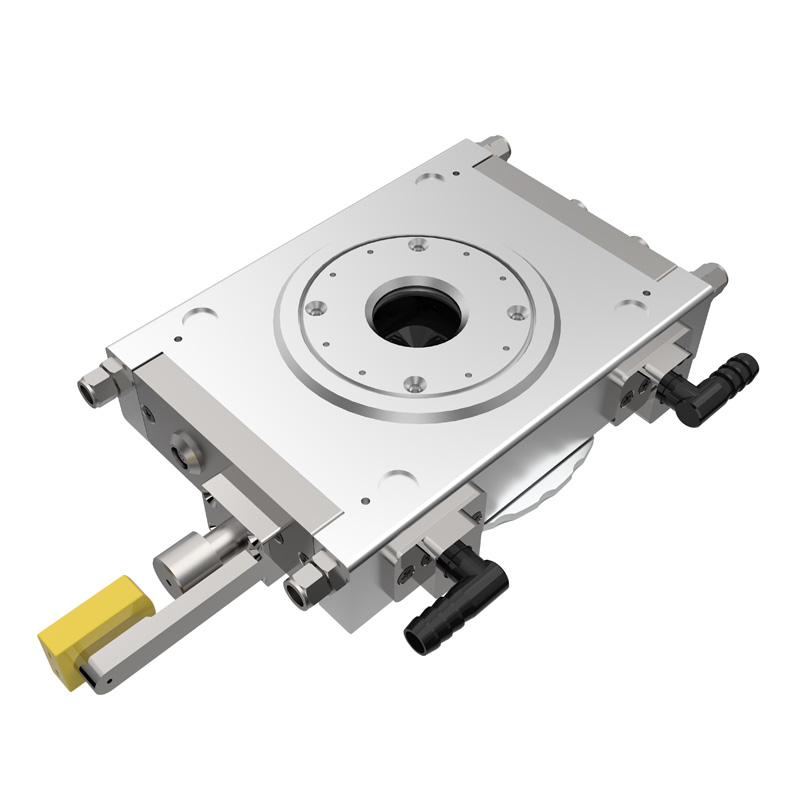

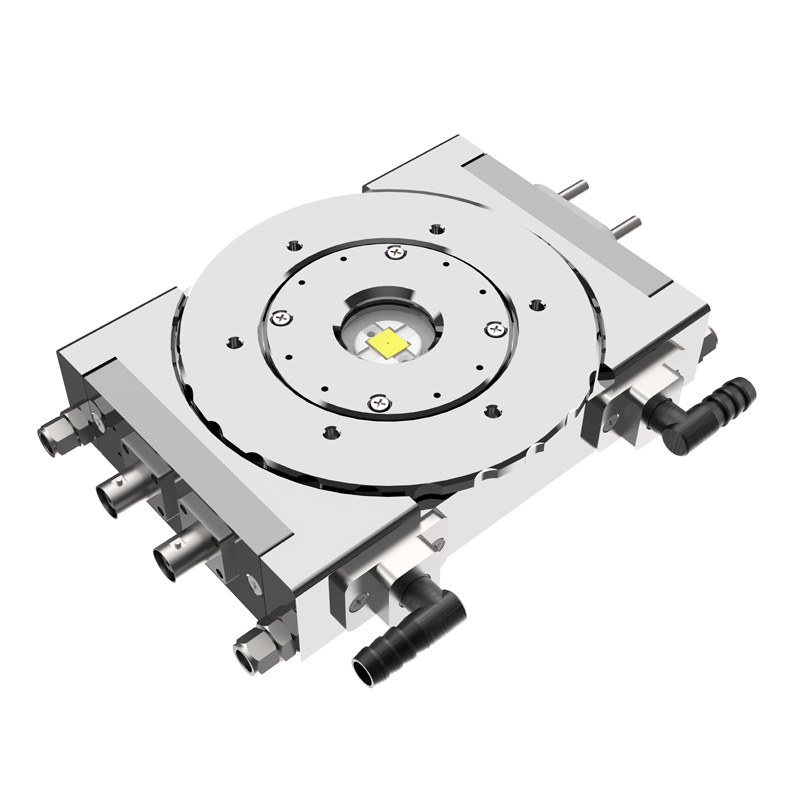

Metallographic microscope hot and cold stage

Describe：This is a stage compatible with mainstream characterization equipment like metallurgical microscopes, PL mapping systems, Raman spectrometers and confocal microscopes. With metallurgical microscope: For metal/alloy R&D, metallurgy and ceramic process research. With PL mapping system: For research on semiconductors (LED/photovoltaics), 2D materials and fluorescent materials. With Raman spectrometer: For research on polymer materials, battery materials and minerals/crystals. With confocal microscope: For biological sample preservation, polymer coating and porous material research.

Model：TS600C-MM,TT600C-MM
Manufacturer：Congtical
Update time：2022-7-16
Visits：3797

Consultation Contact

Products

Product Category

Microscope Series

Polarizing microscope heating and cooling stage Metallographic Microscope Heating and Cooling Stage Inverted Microscope Heating and Cooling Stage Microscope Ultra-high Temperature Stage AFM Heating and Cooling Stage

Articles

Congtical ultra-low temperature optical platform (GM-10K-SM) passed the test successfully by an academy of sciences in Lanzhou recently

Congtical Laboratory | Study on Temperature-Variable Resistivity Characteristics of New Materials

Congtical Laboratory | Comparison, Testing and Analysis of ZT Values of Domestic Thermoelectric Cooler Manufacturers' Products

Introduce

1.Product introduction

This is a stage compatible with mainstream characterization equipment like metallurgical microscopes, PL mapping systems, Raman spectrometers and confocal microscopes.

With metallurgical microscope: For metal/alloy R&D, metallurgy and ceramic process research.

With PL mapping system: For research on semiconductors (LED/photovoltaics), 2D materials and fluorescent materials.

With Raman spectrometer: For research on polymer materials, battery materials and minerals/crystals.

With confocal microscope: For biological sample preservation, polymer coating and porous material research.

2.Product features

The upper cover adopts a screw cap structure for easy sample loading and unloading.
A terminal block or probe can be added inside (usable when the objective lens focal length is ≥ 10mm). It can be used in conjunction with a humidity controller to realize Chamber humidity control.

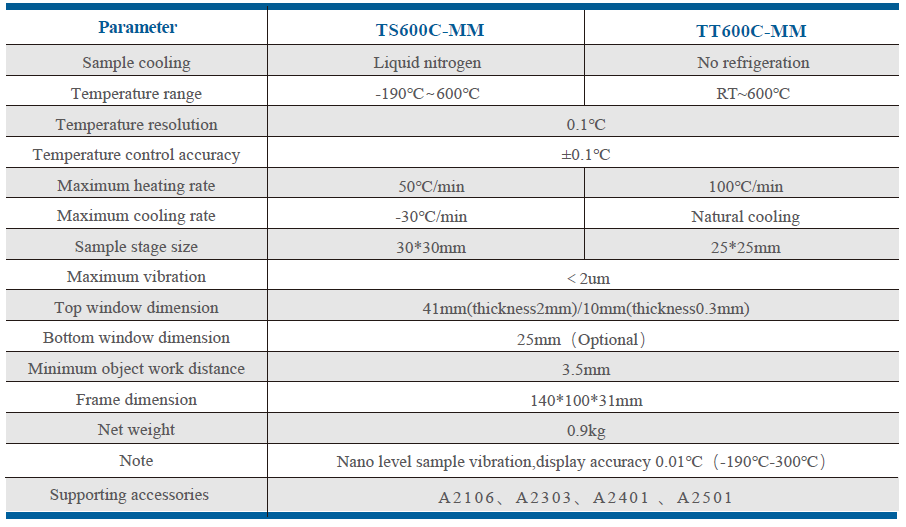

3.Product parameter
